Custom Rotomold Mold Design for Complex Shapes: A Guide from XINGHUI MOLD

In today’s manufacturing landscape, industries demand more than standard solutions—they require customized, high-performance parts with unique geometries. Whether it's for automotive, medical, or industrial applications, rotational molding (or rotomolding) offers an efficient, durable, and cost-effective way to produce complex plastic components. But behind every successful rotomolded part lies one crucial factor: a precision-engineered custom mold.

At XINGHUI MOLD, we specialize in the design and manufacture of custom rotomold molds for complex shapes. In this guide, we’ll walk you through what makes a good custom rotomold mold, the design process, and how our team ensures every mold meets your exact production needs.

Why Custom Mold Design Matters for Complex Parts

Complex plastic parts—those with deep cavities, undercuts, multi-axes, foaming structures, or textured finishes—require advanced mold engineering. Generic molds often fall short when it comes to:

Structural integrity

Easy demolding

Foam integration (PU/PE)

Special surface texture or finishes

Precise wall thickness control

A custom-designed rotomold mold can overcome these challenges, ensuring repeatable quality and high productivity.

XINGHUI MOLD's Approach to Complex Rotomold Mold Design

At XINGHUI MOLD, we combine years of experience with cutting-edge technology to design and manufacture molds that match even the most demanding specifications. Here’s how we approach custom mold design:

1. Customer Collaboration & Concept Evaluation

Every project begins with a deep understanding of your product requirements, application environment, and performance goals. Our engineers evaluate part drawings or samples to determine the most suitable mold structure.

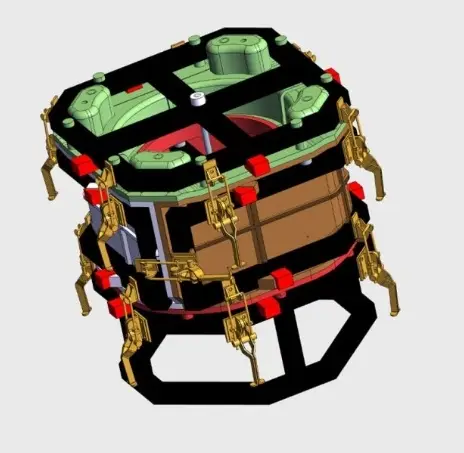

2. 3D CAD Modeling & Structural Simulation

We use advanced 3D CAD software to design the mold structure. For complex shapes, we simulate material flow, shrinkage, and cooling patterns to ensure proper formation and wall uniformity.

3. Demolding Strategy & Draft Design

Complex shapes often require innovative demolding solutions. We design proper draft angles, parting lines, and split cores to ensure that the product can be released easily without damage or warping.

4. Mold Surface Customization

For customers needing unique finishes—such as textured, wood grain, or anti-slip surfaces—we incorporate surface treatments into the mold cavity with CNC engraving or casting techniques.

5. Mold Material Selection

Depending on the product and application, we offer molds made from casting aluminum, machined aluminum, or steel, each selected for thermal stability, precision, and durability.

Advanced Manufacturing for Precision Molds

Our facility is equipped with:

High-speed CNC machining centers

Gantry milling machines for large mold bodies

A full range of rotational molding machines for in-house testing

Surface treatment and finishing systems

With complete in-house capabilities, we control every step of the mold-making process to ensure speed, quality, and precision.

Applications of Custom Rotomold Molds for Complex Parts

XINGHUI MOLD supports custom rotomold mold projects across a wide range of industries:

Automotive: Fuel tanks, wheel arch liners, armrests, bumpers

Medical: Hospital bed components, equipment housings, cushions

Industrial: Tool cases, machine covers, containers

Outdoor Products: Coolers, furniture, water tanks

PU Foam Integration: Cushioned seating, insulated structures

Why Choose XINGHUI MOLD?

Over 15 years of expertise in rotomolding mold design & manufacturing

Professional engineering team offering OEM/ODM customization

Strict quality control and customer-approved design validation

Rapid response, competitive pricing, and global project experience

Start Your Custom Mold Project Today

Designing a complex rotomolded part doesn’t have to be difficult—XINGHUI MOLD is here to simplify the process. From concept to finished mold, we deliver custom solutions that help you bring innovative plastic products to market, faster and better.

Contact us today to discuss your custom rotomold mold requirements!
