Why Rotomolding Is the Best Choice for Large Hollow Plastic Products

When Size Changes the Rules

There is a threshold in plastic manufacturing beyond which the usual options stop making sense. That threshold is somewhere around 20 liters of enclosed volume, or roughly the size of a standard five-gallon bucket. Below it, injection molding, blow molding, and thermoforming all compete on roughly equal footing. Above it, the physics—and the economics—narrow the field to one clear winner for hollow parts: rotational molding.

The Physics Problem Nobody Talks About

Making a hollow plastic part that is three feet long is fundamentally different from making one that is three inches long. The challenges compound non-linearly with size.

Heat transfer slows down. The thermal mass of a large mold—often 1,000 pounds of aluminum or steel—requires 30–60 minutes to heat uniformly in an oven. Injection molding cycles are measured in seconds because the mold never leaves its temperature-controlled press. A large injection mold for a hollow part would need to be actively heated and cooled between shots, destroying the economics.

Material flow breaks down. Blow molding uses air pressure to inflate a parison against a mold wall. As the parison stretches, it thins. On a 6-inch bottle, the thinning is manageable. On a 36-inch kayak, the wall thickness variation becomes extreme—thick near the gate, dangerously thin at the far corners. Rotomolding's tumbling powder approach does not care about flow length; every surface sees material proportional to the time it spends in the powder pool.

Pressure requirements explode. Injection molding clamp force scales with projected area. A 48-inch by 24-inch tank half has a projected area of 1,152 square inches. At a conservative 5,000 psi cavity pressure, that requires a 2,880-ton press. Machines above 3,000 tons exist, but they cost millions and their hourly rates reflect it. Rotomolding requires no clamp force—the mold simply rotates inside an oven.

The Economics: Tooling Cost Wins the Argument

The most compelling reason to choose rotomolding for large hollow products is not technical—it is financial. Consider a 500-gallon (approximately 1,900-liter) chemical storage tank:

For production volumes between 500 and 10,000 units per year—the sweet spot for most large hollow products—rotomolding's tooling advantage translates directly to lower per-unit cost and faster breakeven.

Seamless Construction: Not Having a Weak Point Is a Feature

Every joint, every weld, every bond line in a large hollow product is a potential failure point. A water tank with a circumferential weld can split under hydrostatic pressure. A two-piece kayak with a bonded seam can delaminate after years of sun and water exposure.

Rotomolding produces the entire hollow shell as one continuous wall. Not "joined." Not "assembled." One piece of plastic, uniform molecular structure, from one end to the other. No stress concentrations at seams. No leak paths. No secondary operations like welding, bonding, and sealing that add labor, equipment, inspection, and scrap.

For products like underground fuel storage tanks—where a leak means an environmental remediation bill that can reach six figures—the value of seamless construction is not theoretical. It is the difference between passing a pressure test on day one and passing it on day 3,650.

Design Freedom at Large Scale

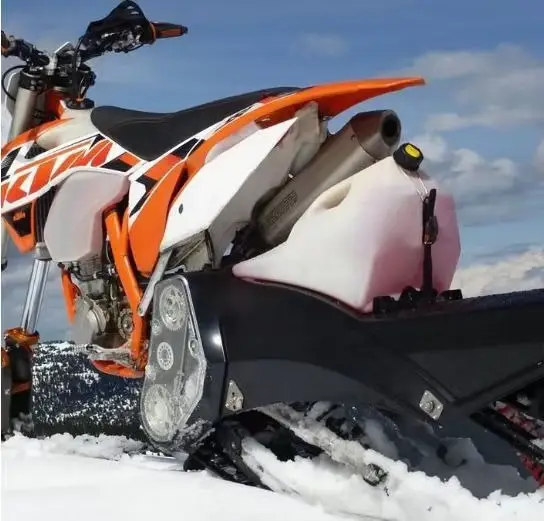

Large hollow products rarely have simple geometries. A kayak has a cockpit, seat mounts, storage hatches, and foot braces. A playground slide has curved chutes, platforms, and attachment flanges. A tractor fuel tank snakes around frame rails and hydraulic lines.

Rotomolding handles this complexity because undercuts and complex contours are moldable—the mold splits open and the part lifts out. Wall thickness can vary intentionally: 8 mm walls at the bottom of a tank for hydrostatic load and 4 mm at the top to save weight, all in one cycle. Threaded metal inserts and mounting brackets can be placed in the mold before each cycle and become permanently encapsulated in the plastic wall.

When Rotomolding Is Not the Answer

Cycle time is slow. A large tank mold might spend 30 minutes in the oven, 20 minutes cooling, and 10 minutes loading/unloading—60 minutes per cycle. For products needing 50,000 units per year, rotomolding requires an impractical number of molds. At those volumes, blow molding's faster cycle times justify the higher tooling investment.

Dimensional precision has limits. Rotomolding tolerances of ±0.020" per inch are acceptable for most large products, but not all. If your product needs to mate with machined metal components to within ±0.005", factor in post-mold machining.

Material options are narrower. PE dominates, with PP and nylon available for specialized applications. If your product requires polycarbonate clarity, PEEK temperature resistance, or a highly filled compound, rotomolding cannot deliver it.

Is Your Product a Good Fit?

Ask three questions: Is it hollow? Is it big (any dimension over 24 inches)? Is your volume 500–10,000 units per year? If you answered yes to all three, rotomolding is not just an option—it is probably your best option.
